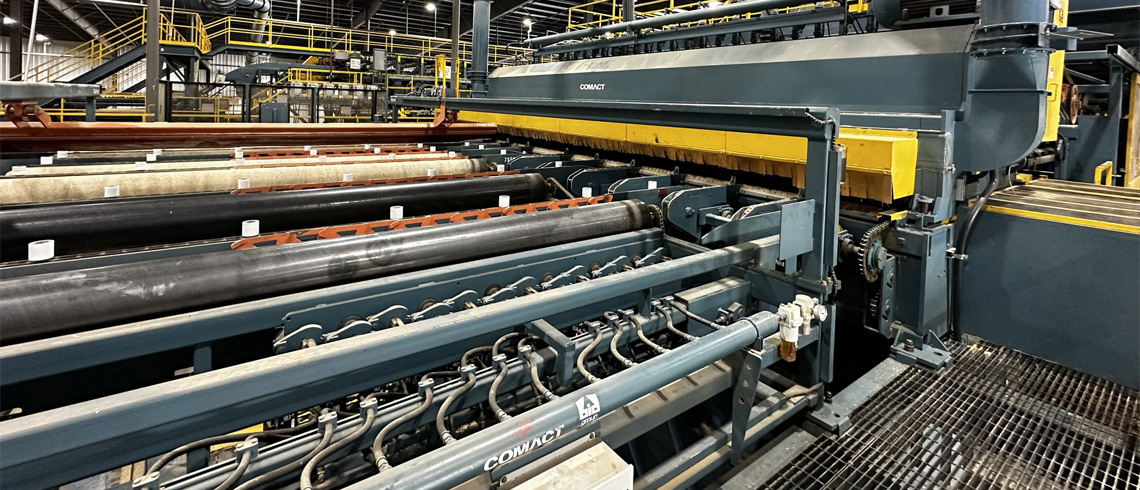

Lineshaft Trimmer
Product
description
Lumber trimming according to the cutting solution; can be mounted with a single or double saw arbor.
Benefits
- Delivers cutting quality and precision, making it ideal for high-value board production
- Unlimited trim length with fixed and mobile saws enabling simultaneous cutting of multiple lengths, including precision end trimming (PET)
- Facilitates trim block evacuation and minimizes the occurrence of jams
Main
features
- Lineshaft drive system equipped with one motor per lineshaft, maximizing available horsepower for each saw
- Simplified maintenance thanks to innovative features like a pivoting hood for easy access when changing saws, an S-wrap saw module belt for quick changeovers without the need for tools, a standard oil mist system in the pneumatic system, and an optional pivoting maintenance floor
- Robust and durable thanks to patented Zorb pneumatic cushioning system
Technical specifications
300 LPM
Up to 24’
(7.3 m)
1 to 4'' thick
(2.5 to 10.1 cm)
3 to 22'' wide
(7.6 to 55.8 cm)
7 x 9'' timber
(17.7 x 22.8 cm)
(other configurations available upon request)
Hardwood
Softwood
